Classifying Power Poles with the New Segmentation Option in Global Mapper

Written by: Amanda Lind


A new option has been added to the Non-Ground Classification tool in version 24.1 of Global Mapper: Power Pole classification. This tool works by identifying cylindrical patterns in the point cloud, similar to how flat planes are used to identify walls in buildings. Compared to the old pole classification method in Global Mapper, the new tool uses the segmentation method to identify features in the point clouds based on their shape and attributes. This blog describes how the tool works under the hood, as well as settings recommendations. You don’t need to know how segmentation works to use the tool, but it’s interesting!

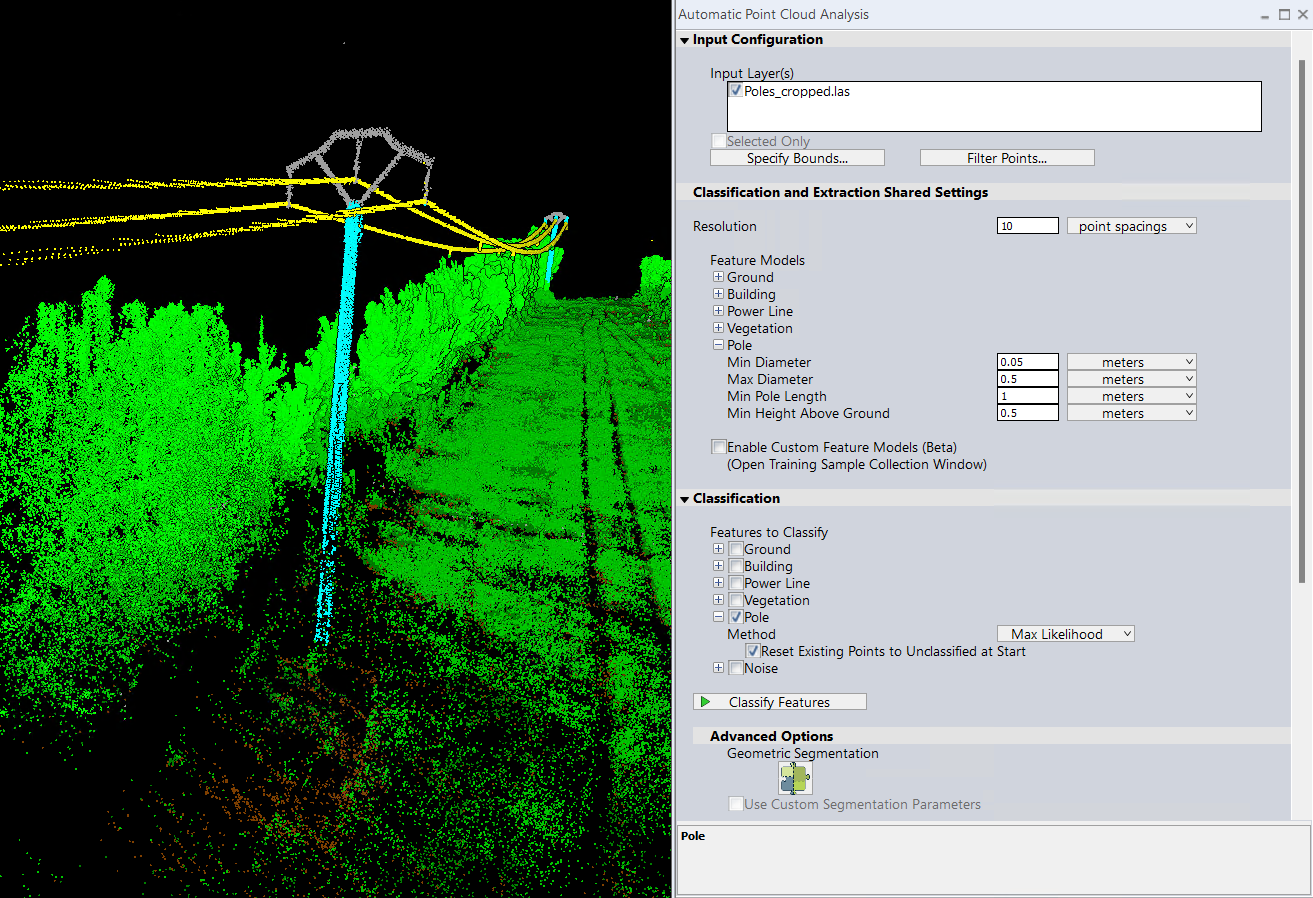

Screenshot of non-ground classification tool open in Global Mapper with a lidar power pole in the background.
The power pole classification option only works on cylindrical poles.

How segmentation is used to find poles

Segmentation is a classification method that is built, and better suited, for how modern lidar is collected. Originally lidar was collected with a sparse aerial sensor, and that is what the older tools like the gridded option were built for. Modern lidar tends to be very dense and is often collected by sensors mounted on things other than planes, such as terrestrial data from tripods or cars or aerially from drones.

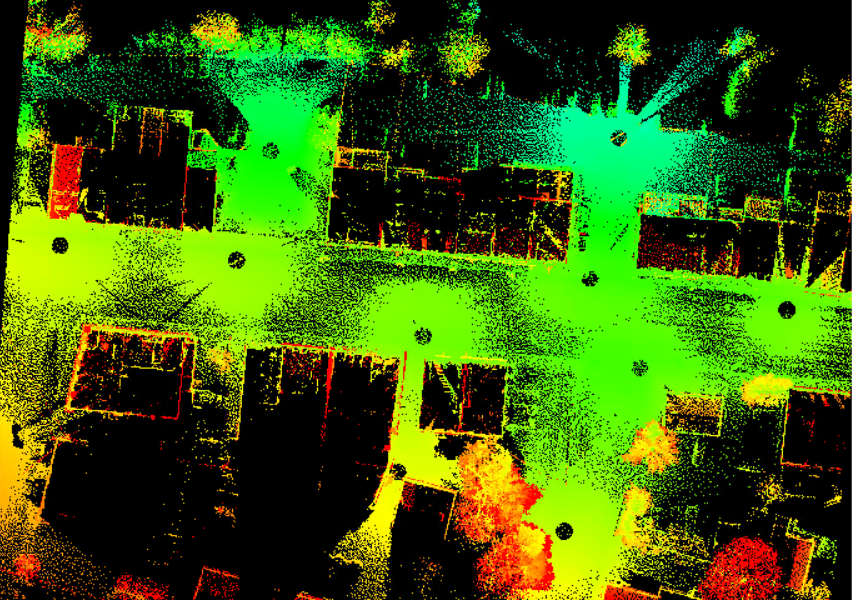

Terrestrial lidar seen from a top-down view of a city block in Global Mapper.
Terrestrial lidar is captured from sensors at ground level. In this top-down view of a city block, you can see empty holes where the sensor was placed. This type of data collection is denser and differently structured than aerial lidar, which impacts which method should be used for classification.

Technically, if you’re interested in doing this the hard way, power poles can also be classified in the original segmentation tool. Most of the options and settings are there. Cylinders/poles have a specific curvature value, among other attributes. The benefit of using this new option instead is that the settings are already tailored to look for pole structures. It also includes the ability to filter by pole diameter and automatically filter by height to weed out other cylindrical objects that are not poles. More information on how segmentation works, in general, can be found here

Under the hood (that is to say, in Global Mapper’s programming), pole classification runs at the same time as building classification. Surfaces in the point cloud are measured for Curvature values, which are used to see if surfaces are very curved (poles) or very flat (buildings). Points left over from this classification are then considered for vegetation. To learn more, read this blog to find tips for building and vegetation classification

Settings Tips

The minimum and maximum settings are used to help differentiate poles from trees. Cylinder features that are outside of these set values will not be classified. Use the measure tool to measure your pole in the data to acquire this value.

Trees are often measured at the same height above ground, called diameter at breast height (DBH). Power poles, functionally unlike trees, are typically uniform in diameter, so pole diameter is assumed to be constant over the pole and isn’t measured at a certain height above ground. You do still want to classify ground points because height above ground is used when measuring pole height to verify that it is indeed a pole and something shorter such as a bollard.

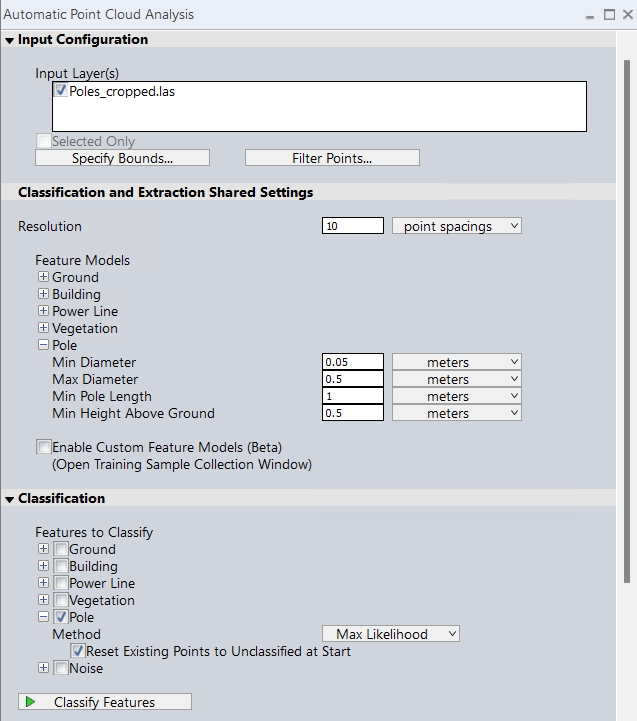

screenshot of the tool for Automatic classification of non-ground points tool in Global Mapper.
As with any classification, be sure to classify noise and ground points first.

Keep the point spacing (neighborhood range) large enough that the poles are still visible. For example, if you are only looking at a 0.1- meter patch, a telephone pole will look pretty flat instead of the cylinder we are looking to classify.

Building points will be searched for and classified every time the tool is run. Classify your pole points first, then turn them off with the Filter Lidar tool before working on building classification. Sometimes the neighborhood range (and stuff) that works best for classifying poles is different from what works for buildings. This, of course, changes based on your data as every point cloud is different based on how and what was collected. These settings, as you may remember from the Troubleshooting Lidar blog series, are how you tell Global Mapper what to expect with your specific data.
