Got a Drone? Now What? — Using Global Mapper with Your UAV

Let’s start with a question. How many of you currently own a Segway? Unless you moonlight as a mall cop or run an urban tour company, you probably decided not to jump on that gyroscopically-controlled bandwagon. If the hype that surrounded the release of this ‘revolutionary technology’ was to be believed, we would long since have abandoned our cars, redesigned our cities, and be living much more fulfilling lives. Alas, the reality has fallen a little short.

The emergence and proliferation of Unmanned Aerial Vehicles (UAVs) or Drones, on the other hand, while not accompanied by a cacophony of hyped-up fanfare, promises to have a much more profound impact on our lives. If current speculation is to be believed, within a few short years, the skies overhead will be swarming with delivery drones, traffic monitoring drones, and even people-moving drones.

For those of us in the mapping industry, this eye-in-the-sky technology effectively addresses one of the perennial challenges that we face: where do we get data, and more specifically, where do we get current data? Traditionally, we have depended on often inadequate and outdated public geospatial data archives or expensive commercial sources. With the advent of readily accessible UAV technology, on-demand data is within anyone’s reach.

The rapid growth of UAV ownership has resulted in an interesting dilemma for some would-be pilots. Having purchased the hardware and collected some data, many are often unclear as to what exactly they can do with it? Over the last couple of years, I have attended several UAV-focused tradeshows and a question that I am often asked is, ‘What can I do with Global Mapper?’ The answer: many things.

Initial Flight Planning

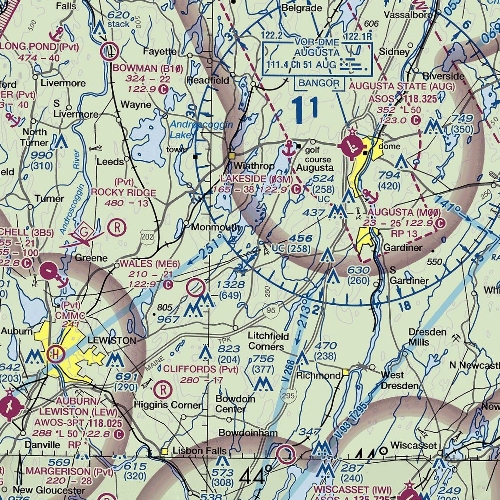

Screenshot of an aviation chart
Among the freely available online data services in Global Mapper are high-resolution aerial imagery, Digital Elevation Models (DEMs), aviation charts, and topographic maps.

Before hitting the launch button, it is a good idea to virtually reconnoiter the project area. What possible obstructions are in the vicinity, what are the terrain characteristics, are there any nearby buildings or other facilities that might have overflight restrictions, what is the coverage area? These questions and more can be answered by loading the relevant data into Global Mapper and conducting some rudimentary pre-flight analysis. Among the freely available online data services are high-resolution aerial imagery, Digital Elevation Models (DEMs), aviation charts, and topographic maps. Global Mapper’s drawing tools can be used to delineate the extent of the project site to determine coverage area and to draft an initial flight plan to optimize the data capture process. All of this data can be transferred to an iOS or Android device running Global Mapper Mobile to allow field checking of the flight plan parameters.

Geotagged Image Viewing

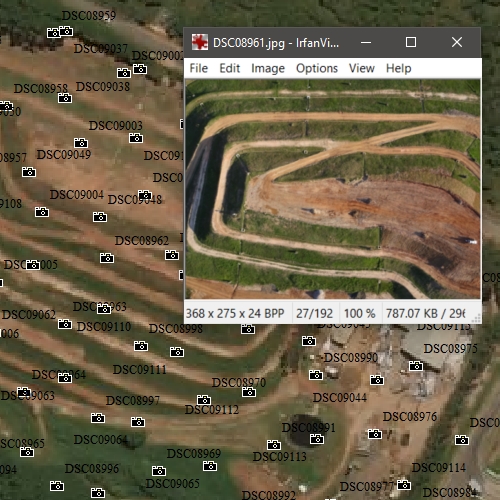

Screenshot of geotagged image in Global Mapper
Images can be loaded into Global Mapper as picture points creating a geographic photo album. Derived from the coordinate values embedded in the image files, the location at which each photo was taken is represented by a camera icon in the map view.

One of the most basic functions of a UAV is taking photographs and as we will discuss below, with sufficient overlap, these images can be processed into a 3D representation of the local area. Before proceeding with this more advanced functionality, the images themselves can be loaded into Global Mapper as picture points creating a geographic photo album. Derived from the coordinate values embedded in the image files, the location at which each photo was taken is represented by a camera icon in the map view. Using Global Mapper’s Feature Info tool, each photo is displayed using the computer’s default image viewer. Viewed in the 3D Viewer, the camera icons will appear above the terrain or ground providing a precise representation of the drone’s altitude when each image was captured.

3D Reconstruction

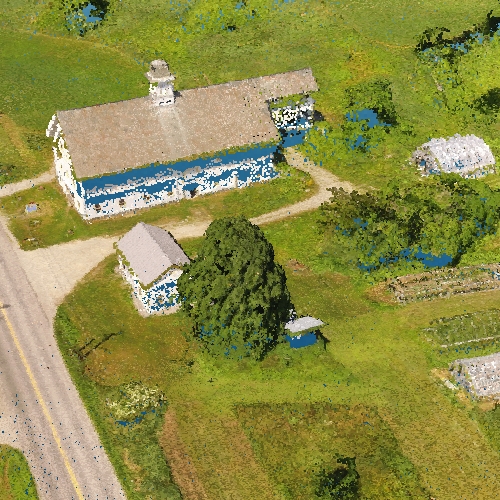

Screenshot of data reconstructed from aerial imagery in Global Mapper Pro
The functionality of the Pixels to Points tool transforms simple drone-collected image files into a dataset that can be used for countless 3D analysis procedures.

Incorporated into Global Mapper Pro, the Pixels to Points tool is used to analyze an array of overlapping images to create a 3D representation of the environment. This powerful component identifies recurring patterns of pixels within multiple photographs and employs the basic principles of photogrammetry to determine the three-dimensional structure of the corresponding surfaces. While the underlying technology is extremely complex, as is typical in Global Mapper, the user’s experience is very straightforward. Simply load the images, apply the necessary settings for the camera system, add ground control points if available, click the Run button, and wait while it creates a high-density point cloud and, if required, a 3D model or mesh. The functionality of the Pixels to Points tool transforms simple drone-collected image files into a dataset that can be used for countless 3D analysis procedures.

Orthoimage Creation

A byproduct of the aforementioned point cloud generation process is the option to create an orthoimage. Defined as a raster layer in which each pixel’s coordinates are geographically correct, the orthoimage is generated by gridding the RGB values in the point cloud. Given its inherent accuracy, this 2D imagery layer can be used for precise measurements or as a base layer for digitizing or drawing operations.

DTM creation and Terrain Analysis

Screenshot of generated DTM surface in Global Mapper Pro
Global Mapper Pro can generate a Digital Terrain Model (DTM) from point cloud data.

As mentioned previously, the Pixels to Points-generated point cloud represents the raw material for numerous analysis procedures in Global Mapper. As with any unprocessed dataset, some QA, cleanup, and processing will be required before embarking on any meaningful workflow. Fortunately, the software offers a plethora of editing and filtering options, including noise point removal, spatial cropping, ground point identification, and automatic reclassification. After isolating the points representing bare earth, the gridding tool is employed to create a Digital Terrain Model (DTM), a 3D raster layer that depicts the ground surface. In turn, this terrain layer can be used to create custom contour lines, to calculate volume, to delineate a watershed, to conduct line-of-site analysis, and, if overlaid on a previously created DTM, to identify and measure change over time.

Video Playback

Aside from capturing still images, most UAVs are equipped with the necessary hardware to record video. Beyond simple recreational use, this functionality is useful for building or asset inspection, strategic reconnaissance, forestry inspection, and in countless other situations where a remote perspective is needed. Global Mapper includes an embedded video player that will play this recording while displaying the corresponding position of the UAV in the map window. The determination of position is derived from the per-vertex timestamp recorded in the track file recorded during the flight. After loading this file as a line feature, and associating it with the corresponding video file, the playback is initiated from the Digitizer’s right-click menu.

Lidar Processing

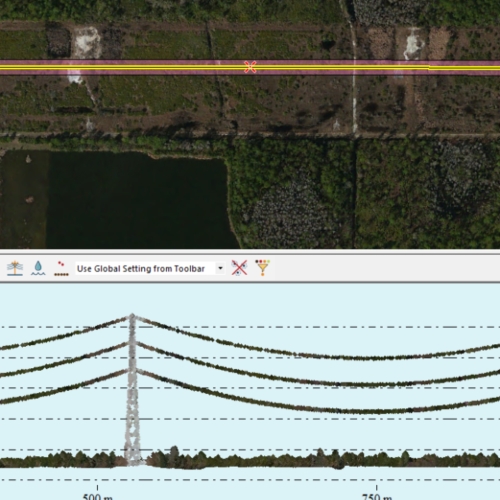

nadir and perpendicular perspectives of powerline point cloud data in Global Mapper Pro
Global Mapper Pro offers a set of tools for identifying, reclassifying, and extracting these features as vector objects.

Not too long ago, it was generally accepted that, due to the size and weight of the required equipment, lidar collection could only be carried out using a manned aircraft. This simple fact contributed to the high cost and logistical challenges of the lidar collection process. Today, miniaturization of the lidar apparatus has reached the point where it is within the payload capacity of many larger drones. Given the limited range of the aircraft, drone-collected lidar is only viable for small, localized projects however it does allow frequent re-flying of a project site and is thus ideally suited for change detection. Global Mapper Pro, offers a wide range of tools for processing lidar data. As previously mentioned, points can be filtered and edited before creating a surface model for terrain analysis. Compared to photogrammetrically created point cloud data, lidar provides a more complete three-dimensional representation of non-ground features such as buildings, powerlines, and trees. Global Mapper Pro offers a set of tools for identifying, reclassifying, and extracting these features as vector objects.

Fundamentally, UAVs and maps have much in common. Both are intended to provide a remote, detached perspective of an area of interest and allow us to see spatial distribution and patterns in our data that would not otherwise be detectable. It is understandable, therefore, that one of the primary functions of a drone is to provide data that can be used for creating maps and other spatial datasets. Global Mapper Pro is ideally suited for this type of workflow and it provides an extensive list of tools that can be used by drone operators.

If you would like to work with UAV collected images and lidar data in Global Mapper Pro, download a 14-day free trial today! If you have any questions, don’t hesitate to get in touch.
