Free Elevation Data Sources to Use in Global Mapper

Finding data can sometimes be one of the most challenging parts of starting a GIS project. Once the data has been acquired, loading it into Global Mapper is easy – it has the most extensive list of compatible file types for a GIS software anywhere! Elevation data is typically offered as a raster which often represents the Earth’s surface, or bathymetric data can represent the surface below the water as well. These rasters can sometimes come as Digital Terrain Models (DTM) with only the ground represented, or as Digital Surface Models (DSM) that also represent buildings, vegetation, and everything on the earth’s surface. Most modern elevation raster data is generated from lidar. Downloading lidar instead of raster data lets you take more control over the elevation being represented in the dataset. Global Mapper can help you classify, improve, and create gridded layers from lidar to best suit your project’s needs. To help you get started, here are a few popular sources for free elevation data.

Tip: Want to take your elevation data into the field, or stream it on the go? Try Global Maper Mobile.

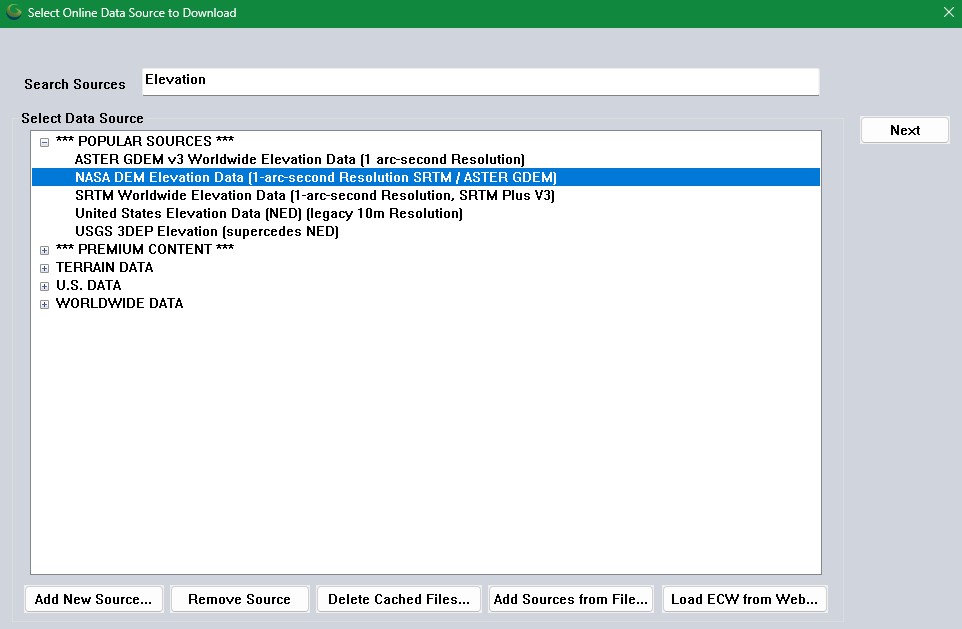

Global Mapper’s Online Data Tool

First, the Online Data tool is the simplest way to find and acquire data. Along with other vector and imagery sources, elevation data can be streamed as terrain and lidar data in multiple formats. Most of the data is streamed from freely available sources such as STRM, the USGS National Map, and others that automatically open to be accessed through your default browser. The benefit of opening these web portals through Global Mapper is that it automatically pans the browser’s map to match the current data extent open in your Global Mapper workspace. Higher-resolution data can also be purchased from Intermap NEXT map (terrain) or USGS Amazon S3 (Lidar). Once loaded into your workspace, the data can be exported and saved on your machine to be used in Global Mapper’s terrain editing toolset. Found a server that we don’t host? You can add it to your Global Mapper with the Add Custom Sources option. For more information, check out this other blog on Working with Online Data in Global Mapper.

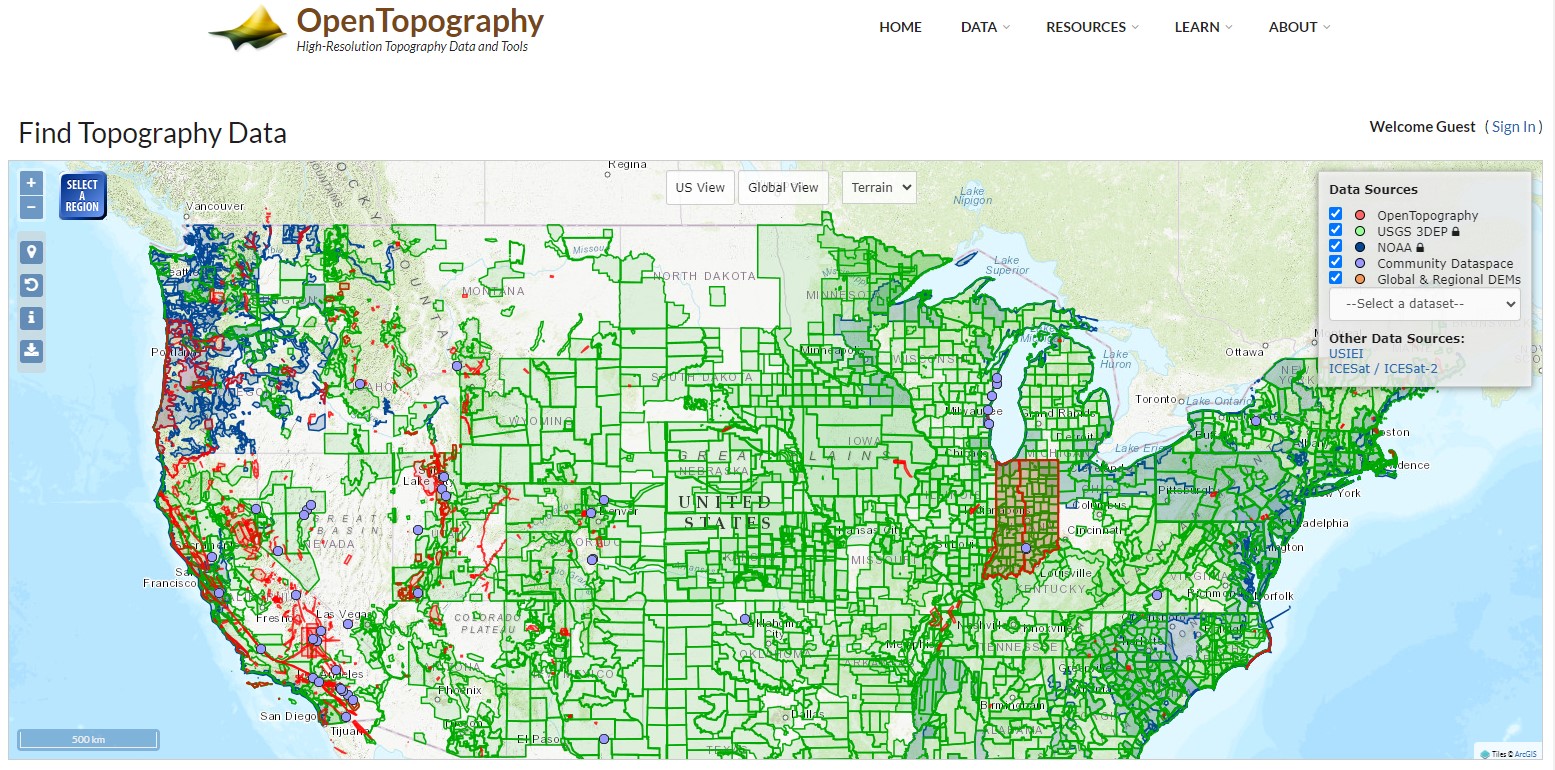

Open Topography: Lidar and DEMs

Listed as one of the largest open data portals for free lidar data, Open Topography is a widely popular site that hosts data from multiple sources, including files publicly submitted to their community hub. It’s funded by multiple state and government organizations, including NASA, NOAA, and more. Ninety percent of the lidar provided is available in the United States, Canada, Australia, Brazil, Haiti, Mexico, and Puerto Rico. In areas where lidar is unavailable, coarse global DEMs are available for download. This source is also listed in the Online Data tool in the Lidar section.

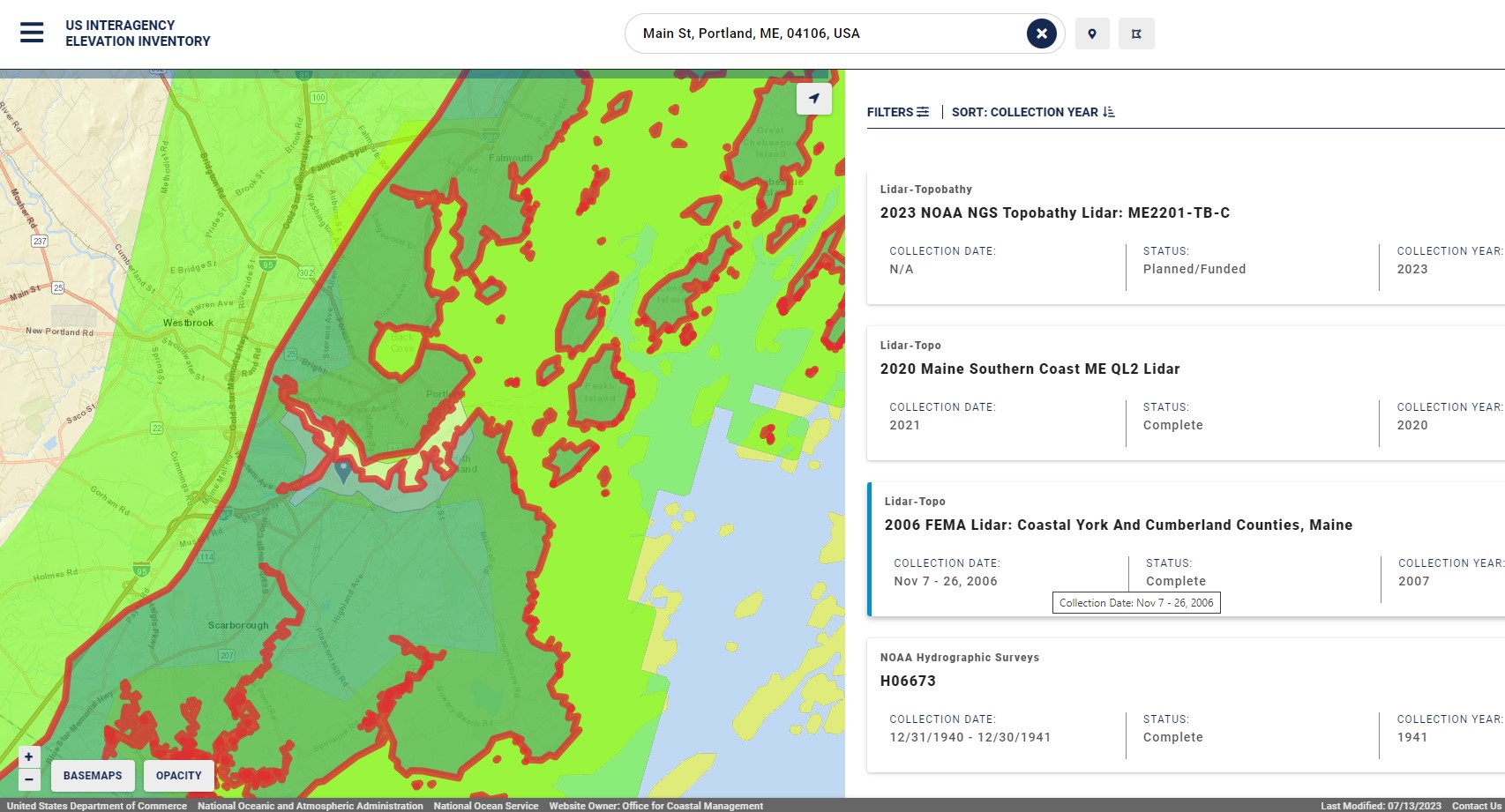

United States Interagency Elevation Inventory – USIEI

The United States Interagency Elevation Inventory (USIEI) is a single resource for information about all known, completed, and in-progress broad-area public domain elevation data. It is a joint effort of NOAA and the U.S. Geological Survey, with contributions from FEMA, the National Park Service, the US Army Corps of Engineers, the Natural Resources Conservation Service, and the US Department of Agriculture. The inventory displays high-accuracy topographic and bathymetric data for the US, and it’s intended to be a comprehensive, nationwide listing of known high-accuracy topographic data, including lidar. The inventory is updated semi-annually. Despite the impressiveness of the inventory, it’s often easier to download this data from other federal sources such as the USGS Earth Explorer.

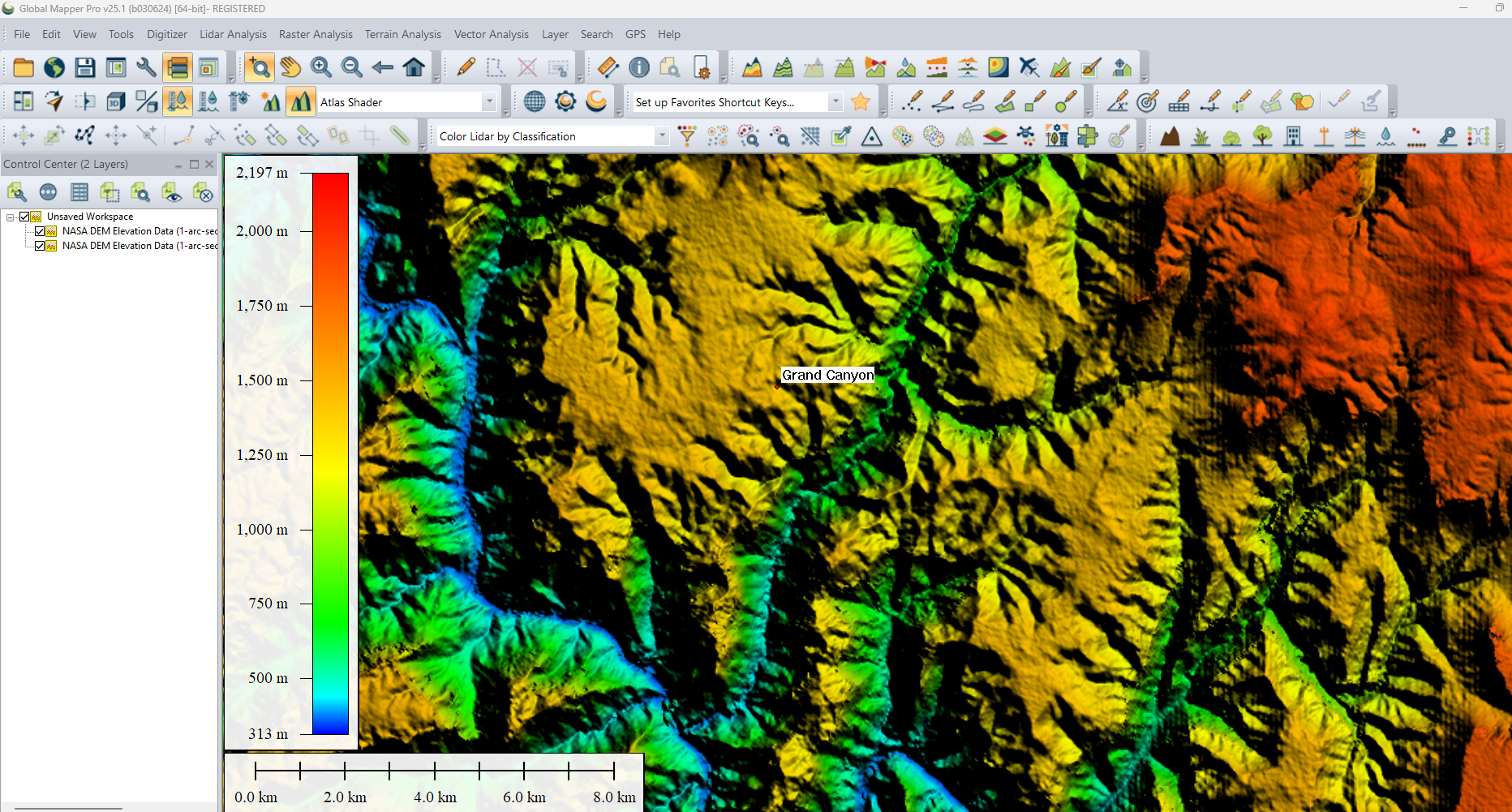

NASA’s Digital Elevation Model – NASADEM

NASA’s Digital Elevation Model has global coverage and was created to provide one-arcsecond resolution worldwide imagery with better clarity than existing SRTM DEM and ASTER GDEM sources. ANASA’s Ice, Cloud, and Land Elevation Satellite (ICESat)/Geoscience Laser Altimeter (GLAS) surface elevation measurements are also available in this data set. The full list of information on this new source is available on their website. Like many sources, this data is available for download externally, but the ability to directly stream data for your study area through the online data tool without leaving Global Mapper is always a welcome addition.  Online Data sources update automatically, independent of software installs, making this option available no matter which version you are using.

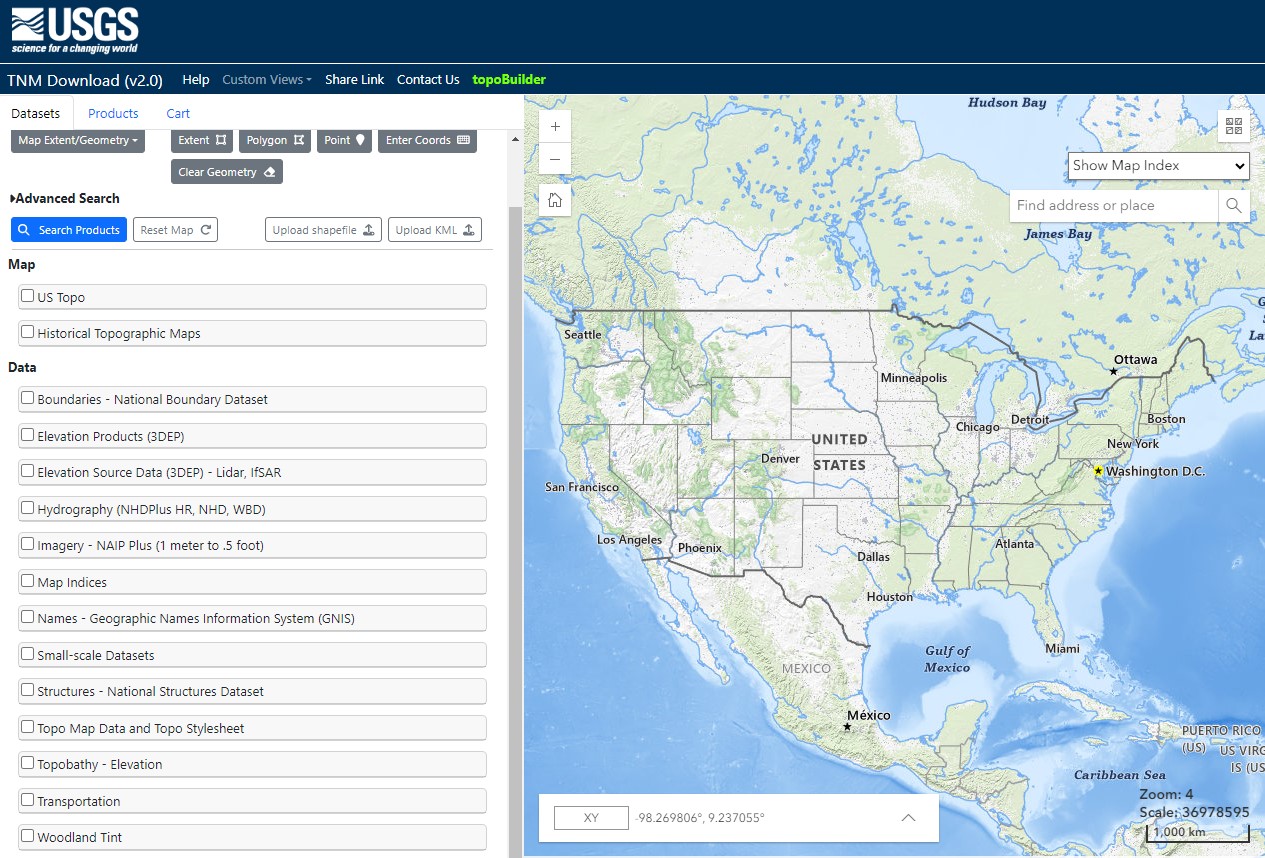

USGS National Map – TNM

The National Map (TNM) is a primary source of free USGS geospatial data. It is the result of a collaborative effort among the USGS and other Federal, State, and local partners to improve and deliver topographic information for the United States. The provided data includes elevation, boundaries, geographic names, hydrography, land cover, orthoimagery, structures, and transportation. Available elevation data includes source data such as Lidar, and elevation products generated from the source data such as digital elevation models (DEMs). This data can be downloaded from the TNM Download site or as directed through Global Mapper’s Online Data tool.

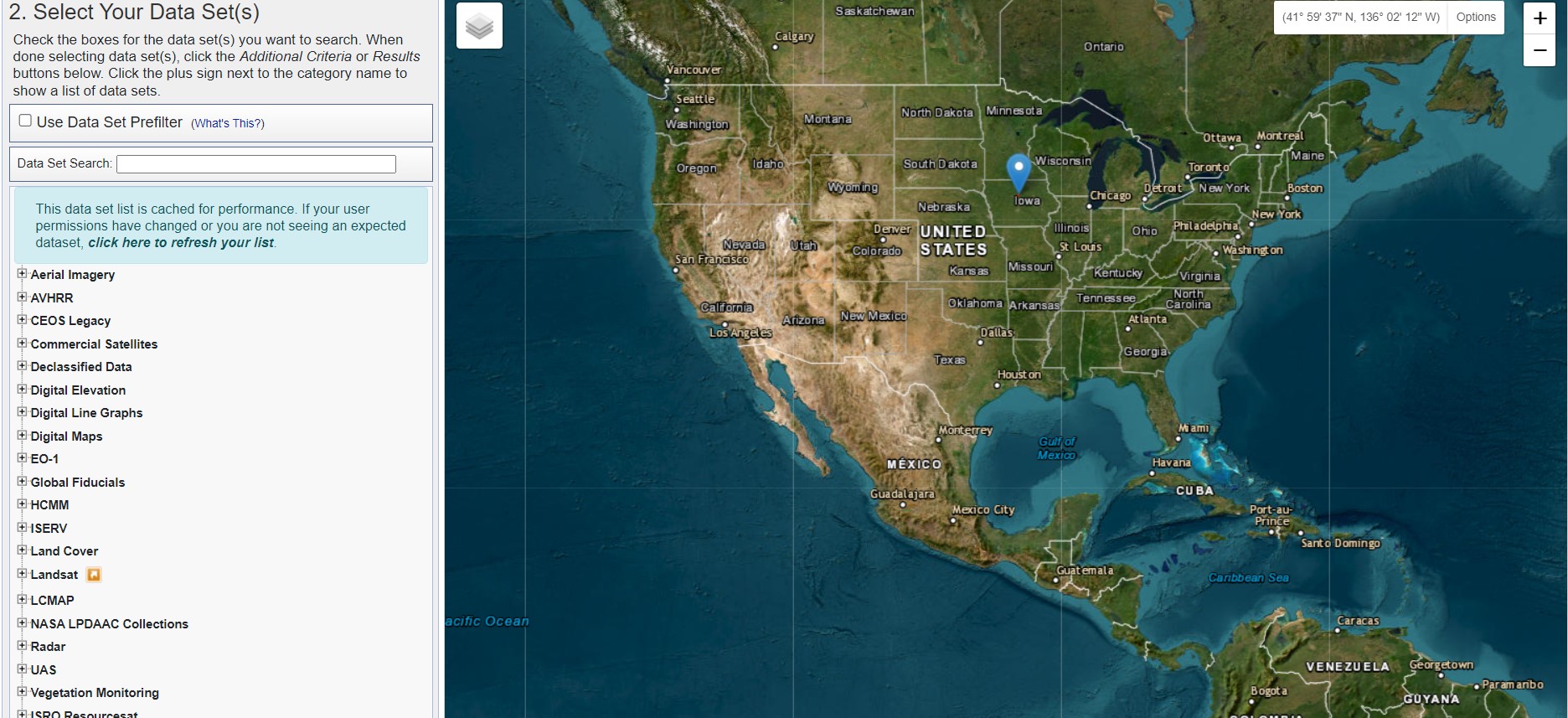

USGS Earth Explorer

The EarthExplorer (EE) was developed by the United States Geological Survey (USGS) and provides online search data download of satellite, aircraft, and other remote sensing inventories. Data is available from multiple sources, including the Space Shuttle Radar Topography Mission (STRM), which mapped Earth’s topography at one arc-second (30 meters) for over 80% of the Earth’s surface, and ASTER GDEM-2, which can sometimes be considered a more accurate representation in rugged mountainous terrain than the SRTM elevation model. A study that compared a few of these sources can be found here. Data downloads are not restricted to the US and can be used anywhere. The Explorer site is easy to navigate, and there are many tutorials to help you get started.

Earth Explorer is one of the sources in Global Mapper’s Online Data tool, as mentioned above that will redirect you to the website in your default browser. Loading from the online data tool will automatically pan to your study area as matched to your GM workspace. Download the data to use it in your workspace.

JAXA’s Precise Global Digital 3D Map via ALOS

The JAXA Global ALOS portal provides access to ALOS World 3D, a 30-meter resolution digital surface model (DSM) captured by the Japan Aerospace Exploration Agency (JAXA). It’s only recently been made available to the public. This DSM was created from about 3 million images with a 5m resolution captured via the Advanced Land Observing Satellite “DAICHI” (ALOS).  It is boasted as the most precise global-scale elevation data currently available. It uses the Advanced Land Observing Satellite “DAICHI” (ALOS) based on stereo mapping from PRISM. Note that downloading the JAXA’s Global ALOS 3D World requires an online registration.

State Sources

Local governments often provide data on their represented areas. This data is typically collected by private companies and made then available to the public. Often, you can find these on the government’s website through a GIS portal or similar. Sometimes these sources are hosted on servers that can be streamed directly into Global Mapper. To get you started, here is a list of state-wide lidar datasets:  https://en.wikipedia.org/wiki/National_Lidar_Dataset_(United_States)

Bathymetric Data Sources:

Bathymetric data maps the depths and shapes of underwater terrain, providing valuable information for shipping lane construction, subsurface navigation, geologic history, and more. Accurate bathymetric data is essential because the shape and depth of the ocean floor affect the speed and height of waves, and the coastal land topography primarily determines the inland extent of inundation.

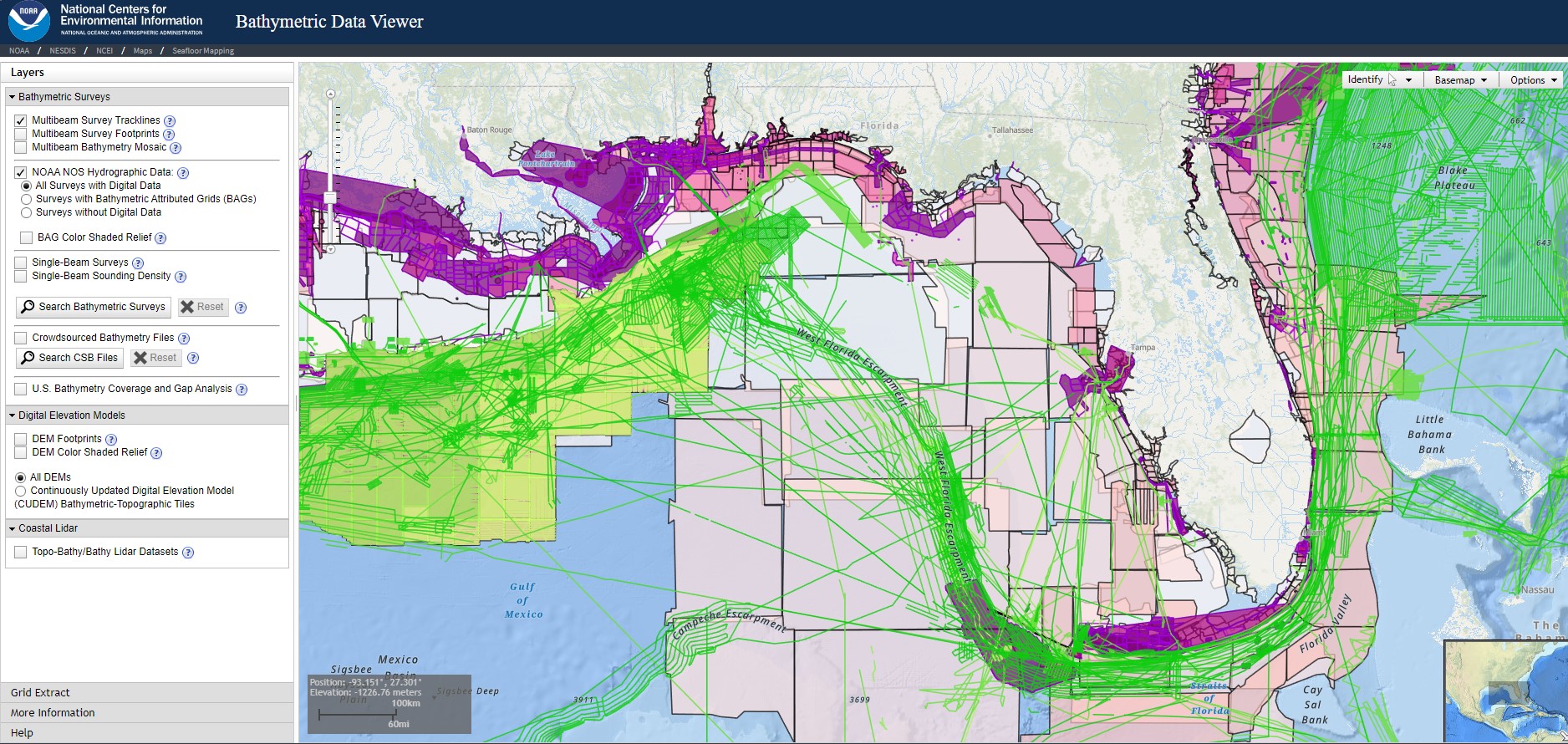

NOAA – Bathymetric DEMs

In NOAA hydrographic surveys, the multi-beam and track line bathymetry are provided via the NOAA National Centers for Environmental Information (NCEI). However, access to the bathymetric data can be directly sourced from the NCEI at NOAA Bathymetric Data Viewer. This portal provides lidar but also land cover and imagery. The site boasts visualization tools, predictive tools, and tools that make data easier to find and use. Content comes from many sources, all of which are vetted by NOAA. All of these results can be imported into Global Mapper to integrate with your existing data.

ETOPO Global Relief Model

The ETOPO Global Relief Model is a full-coverage, seamless, gridded topographic and bathymetric bare-earth elevation dataset created from regional and global datasets of topography, bathymetry, and shoreline data. The model is designed to support tsunami forecasting, modeling, and warning, as well as ocean circulation modeling and Earth visualization. It’s released globally as a full-global-coverage earth surface elevation file comprised of 288 individual 15×15 degree tiles (latitude/longitude) at 15-arc-second geographic resolution. Also available are additional 62 tiles of “bed” versions that provide bedrock elevations under the surface of the Greenland and Antarctic ice sheets. Access the data download tool here: https://www.ncei.noaa.gov/maps/grid-extract/

If you would like to explore an elevation data workflow in Global Mapper Pro by downloading a free, 14-day trial today! If you have any questions, please contact us.
