SpatialDisjoint

globalmapper.SpatialDisjoint(GM_LayerHandle_t32 aLayer1, GM_LayerHandle_t32 aLayer2, GM_SpatialOps_Params_t aParams) → GM_Error_t32[source]

The Disjoint predicate returns the set of features from one layer that do not intersect with any features from another layer. Disjoint features have no overlap between interior or boundary.

Parameters:

  • aLayer1 (GM_LayerHandle_t32) – First layer in predicate

  • aLayer2 (GM_LayerHandle_t32) – Second layer in predicate

  • aParams (GM_SpatialOps_Params_t) – Parameters

Returns:

Error Code

Return type:

GM_Error_t32

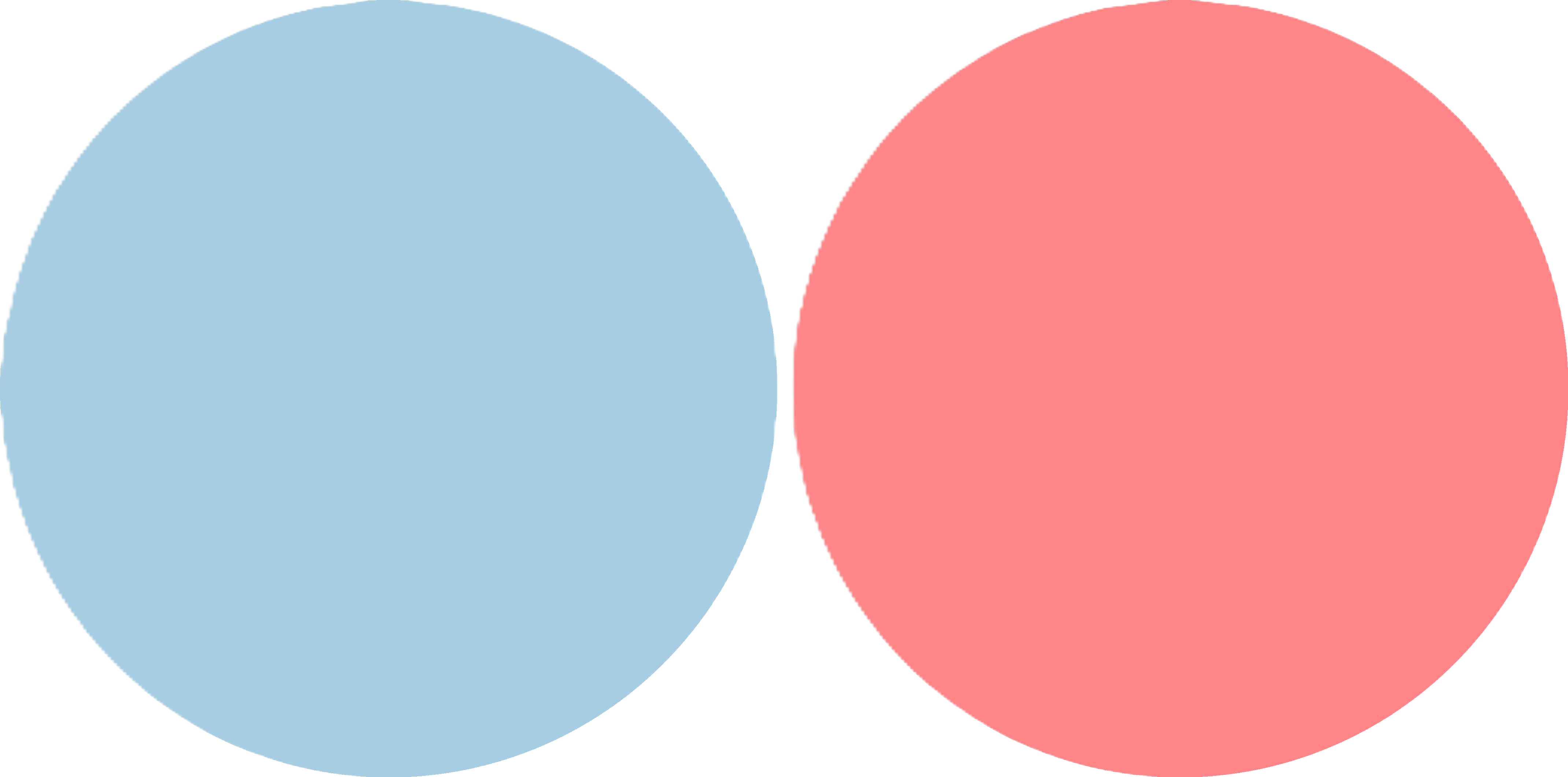

BEFORE

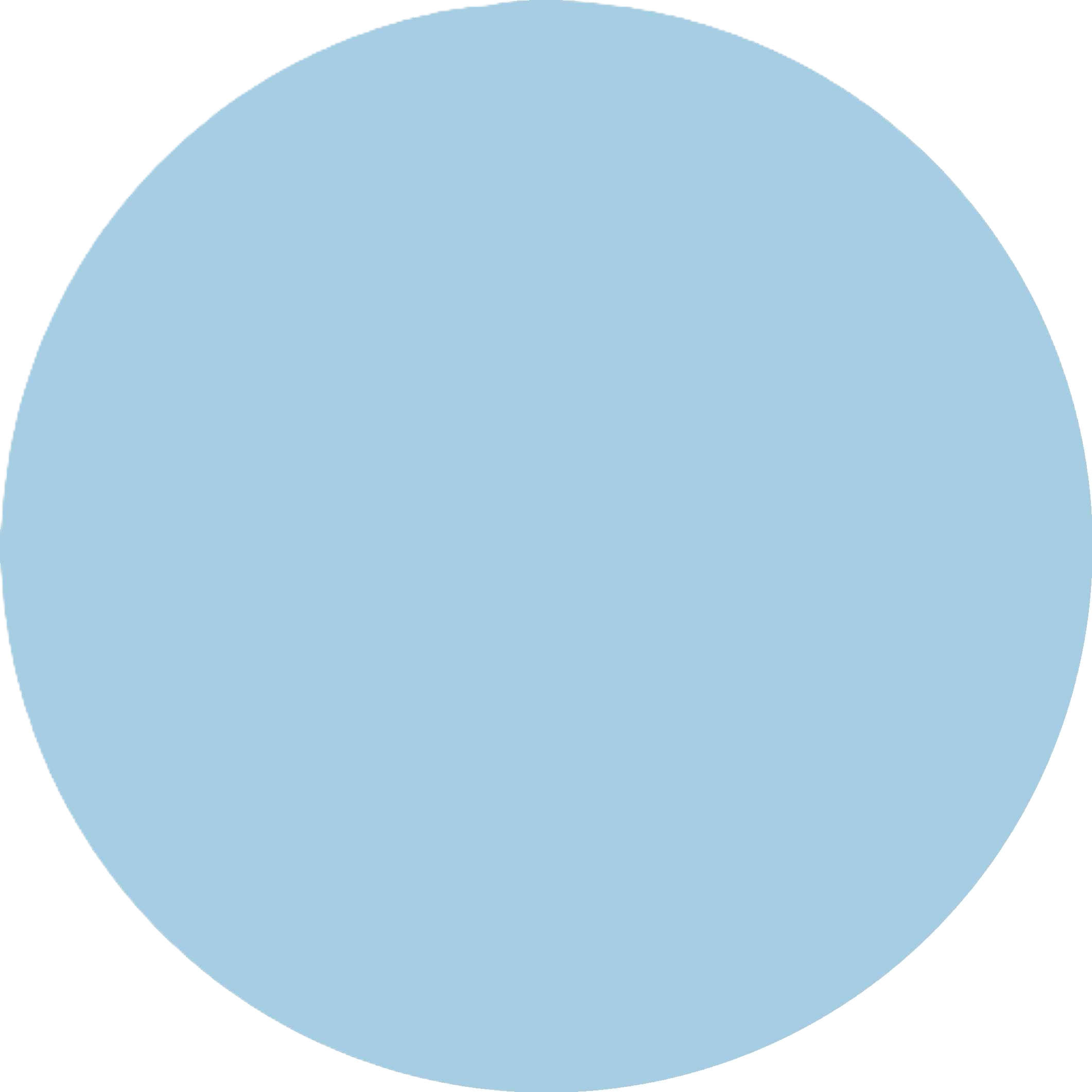

AFTER
../_images/DisjointBefore.png ../_images/BlueCircle.png

Example

The following is an example of SpatialDisjoint.

spatial_params = gm.GM_SpatialOps_Params_t()
spatial_params.mPredicateResultTarget = gm.GM_PredicateResult_CreateNewLayer
spatial_params.mResultLayerName = "Disjoint_Result"
err_SpatialDisjoint = gm.SpatialDisjoint(
    layers_list[0], layers_list[1], spatial_params
)
