Lidar Automatic Ground Classification

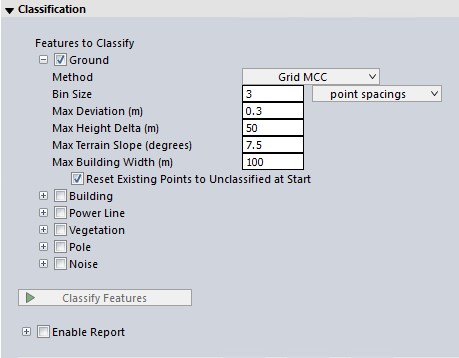

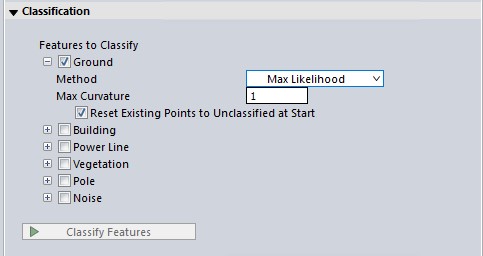

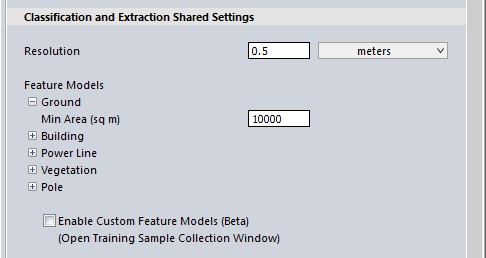

The Auto-Classify Ground Points tool on the Lidar Toolbar brings up the Automatic Classification of Ground Points settings window (below). These values may be changed to optimize the algorithm output based on the local terrain, the range of elevation values in the data set, user-defined preferences for filtering points prior to auto-classification, or known features in the landscape.

This tool requires Global Mapper Pro.

The ground classification is a two-part process that removes points that are likely not ground, and then compares the remaining points to a modeled 3D curved surface inside a series of bins (i.e. a gridding of the lidar into smaller areas).

Select Unclassified Point Cloud(s) to find Likely Ground Points In

If more than one Lidar data set is loaded into the workspace, specific Lidar layers may be selected, or unselected, for classification. Check the option to 'Only Classify Lidar Points Selected in Digitizer Tool' to run classification tool only on points selected by the Digitizer.

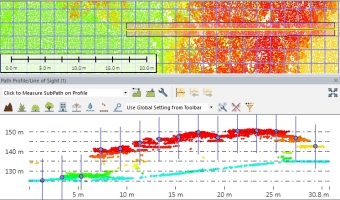

Base Bin Size

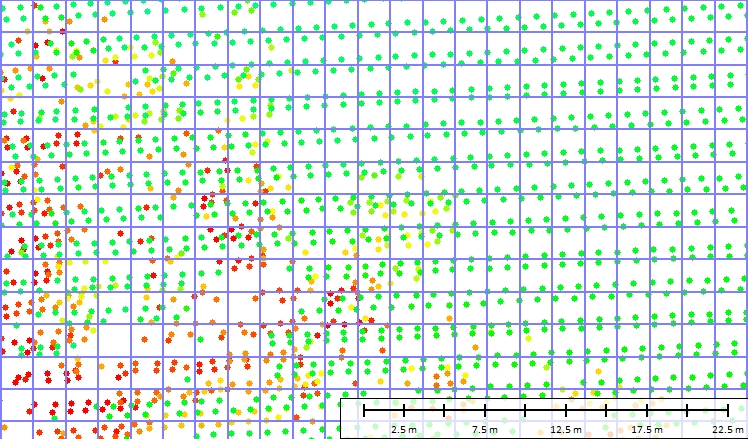

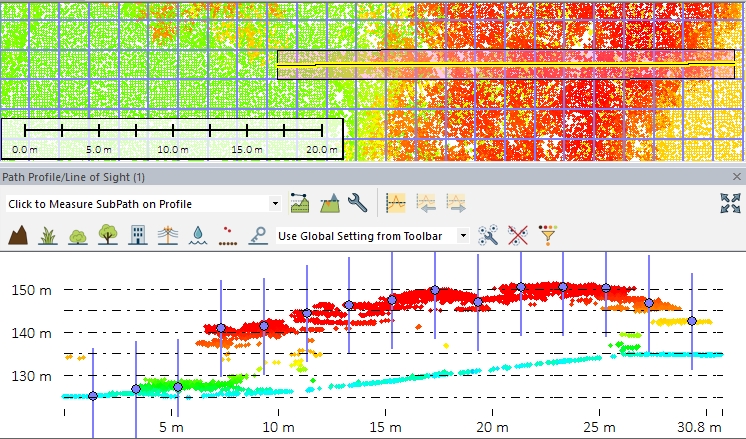

Base Bin Size to Check for Curvature Deviations - The primary ground classification algorithm depends on comparing points to their neighbors inside of a small local area. The Base Bin size defines the size of that area. This value may be set in Meters or calculated from the average point spacing of the loaded data.

Smaller distances will result in higher accuracy, but will require higher resolution Lidar data and longer processing times. Those working with low resolution data should use a higher value. A value that captures at least 3 Lidar points inside of each bin is recommended, with larger bin sizes increasing the speed of processing, but also decreasing the accuracy. The default value is 2 meters, or 3 point spacings if the data is low density (less than 1.5 points per square meter).

Measurement in Point Spacings is calculated from the loaded point data. The calculated average point spacing can be viewed in the layer metadata statistics. For reproduce-able results across different data sets, such as continuous tiles of Lidar, specify a fixed value in meters for the Base Bin Size.

Minimum Height Departure from Local Mean

Minimum Height Departure from Local Mean for Non-Ground Point - Specify the allowed height change from the local averaged minimum, at which to remove points from the ground classification. This filter is used in the second part of the algorithm, for modeling a curved ground surface.

The default value of 0.3 meters works well with most medium density data that has a moderate amount of height variance in the observations. Small values will remove low vegetation and brush from the ground classification (in high density data). Larger values (such as 1 meter to 3 meters) are usually necessary for lower resolution lidar data (with a density of 2 points per square meter or less).

Removal of Likely Non-Ground Points

The parameter settings below allow the user to control the values used for the removal of points that are not likely to be ground points. This step happens first, in order to remove from consideration points that are not likely to be ground.

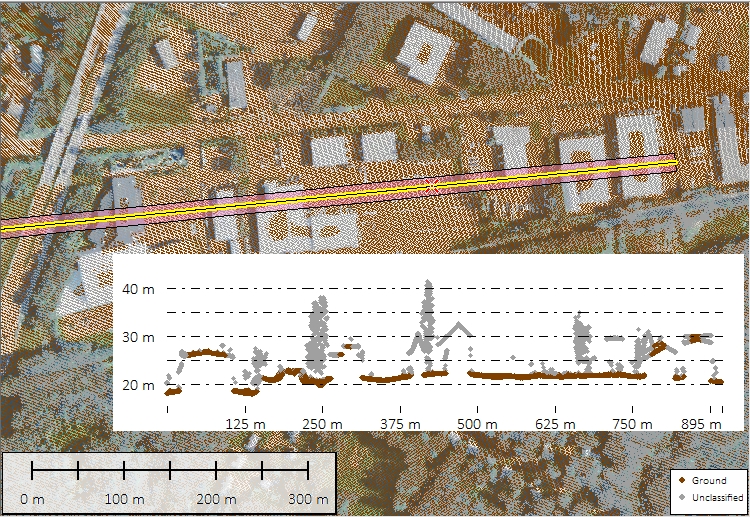

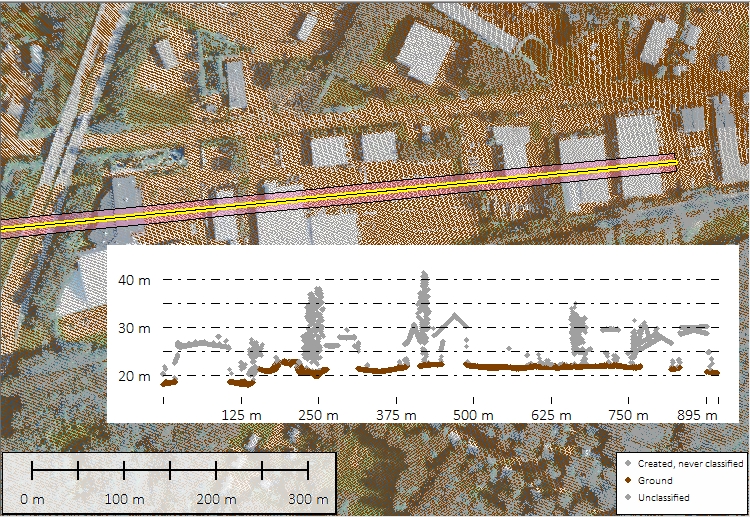

Maximum Height Delta

Specify the maximum change in elevation for the ground. This should be set to the expected range in elevation of the ground throughout the point cloud.

This first filter helps to remove points that definitely shouldn't be considered ground, and therefore can also speed up the processing of the remaining points. If the expected change in ground height is less than the height of buildings, this can greatly improve classification by removing relatively flat built environments from consideration.

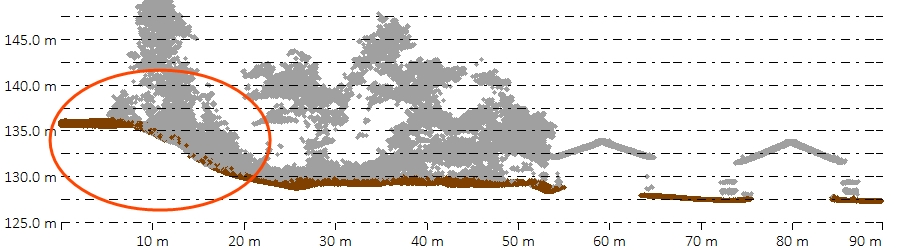

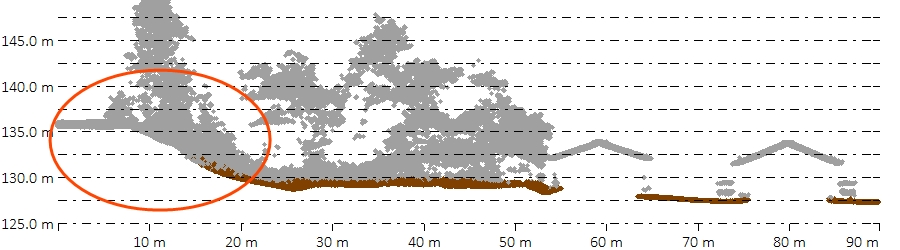

Expected Terrain Slope

Specify the expected slope of the terrain in degrees. Built environments like building roofs and building walls typically have steep slopes. Regions of the point cloud that follow continuous surfaces but are steeper than the expected terrain slope will be removed from consideration as ground points. The default value of 7.5° is applicable to relatively flat areas without large embankments.

Note that in very hilly areas, it may also be necessary to increase the Minimum Height Departure from Local Mean value and / or decrease the Base Bin Size to accommodate the slope in the second part of the algorithm.

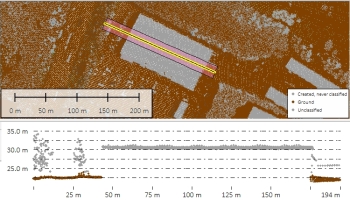

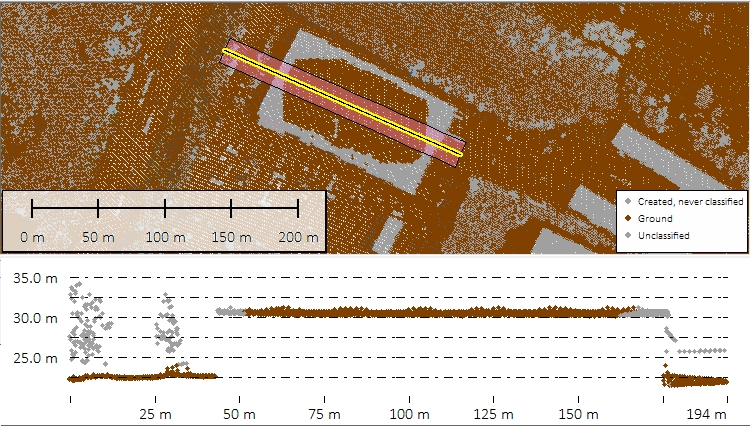

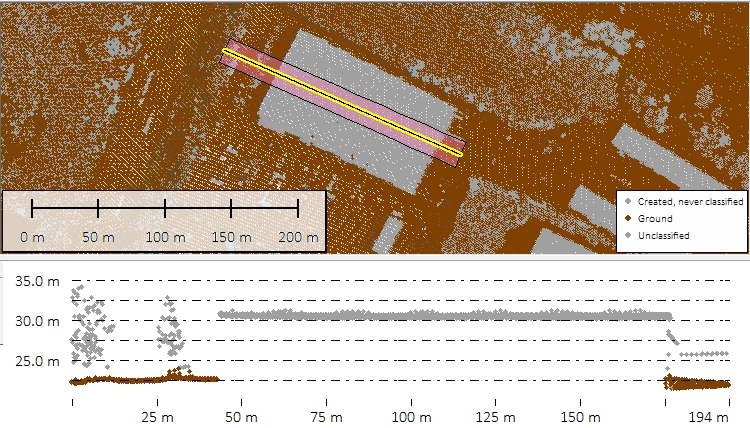

Maximum Building Width

To remove large building roofs from the ground classification, specify the maximum building width. Larger values will cause longer processing times, but will help to remove large commercial and industrial building roofs from the ground classification.

This is part of the first filter, and compares the local minimum to neighbors in progressively larger areas. This helps to remove building roofs and other built environments from the ground category, since there are no ground returns inside those areas. Since the filter progressively builds to the maximum building width value, be aware that larger values will increase processing time.

Customization of this parameter became available in Global Mapper v19. In previous versions this value was fixed at 50 meters, which is a good value for many urban areas, but may miss some of the larger building roofs and fail to eliminate them from the ground class.

Increasing the Base Bin Size and/ or decreasing the Maximum Height Delta may also help to remove large building roofs from the ground class.

Additional Options

Reset Existing Ground Points to Unclassified at Start - Resets the Unclassified Ground Point data, resetting any points classified as ground. Removes all manual and automatic classification of ground points in selected point data.

Specify Bounds...Manually specify the bounds for applying auto-classification of ground points. May use North, West, South, East coordinates to define coordinates, or draw an area feature to define classification boundaries.

Filter Points...Contains additional settings for filtering points for classification by elevation and color values, Source ID, and existing classification. The user may also exclude all points outside of a specified scan angle.

Restore Defaults - Restores the default settings for the Auto-Classify Ground Points tool.
