XYZ Grid

The Export XYZ Grid command allows the user to export any loaded elevation grid data sets to a comma-delimited ASCII XYZ file. Each grid point will be represented as follows (actual coordinate delimiter is configurable):

x-coordinate,y-coordinate,z-coordinate

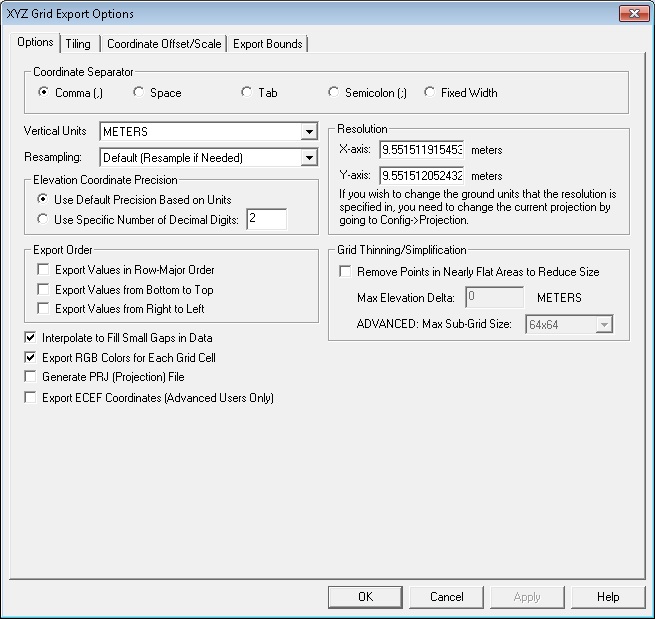

When selected, the command displays the XYZ Grid Export Options dialog (below) which allows the user to setup the export. The dialog consists of a General options panel which allows the user to set up the grid spacing and vertical units, a Gridding panel, and an Export Bounds panel which allows the user to set up the portion of the loaded data they wish to export.


Coordinate Separator - Select delimiter type to separate coordinate values.

Vertical Units - Specify the Vertical Units to be used for the grid export.

Use the Resampling section to select a resampling method (if applicable) to be used in generating the exported grid. The Elevation Coordinate Precision can be used to set specify decimal precision, if different from default/native units. The X or Y axis resolution can be manually specified in the Resolution section, the units can be edited in the Configure Projection dialogue.

The Grid Thinning/Simplification options can be used to thin and simplify dense grids. Use Remove Points in Nearly Flat Areas to Reduce Size if your data contains flat areas that you require only a few points to represent, hilly areas you will get denser points so that the terrain is represented with a minimum number of points overall. Once this option is selected, you may specify a maximum sub-grid size, and the export will break the grid into blocks that are 4x4, 8x8, 16x16, 32x32, 64x64, 128x128, 256x256 or 512x512. With everything in a block within a specified elevation range, you will get a single central point for the block. If the range is too large, then that 64x64 block (for example) would get broken in to 4 32x32 blocks and the process repeated.
