The Create Contours (from Terrain Grid) command allows the user to generate equally spaced contour lines from any loaded elevation grid data. Choose this option from the Analysis Menu, or the Analysis Toolbar button.

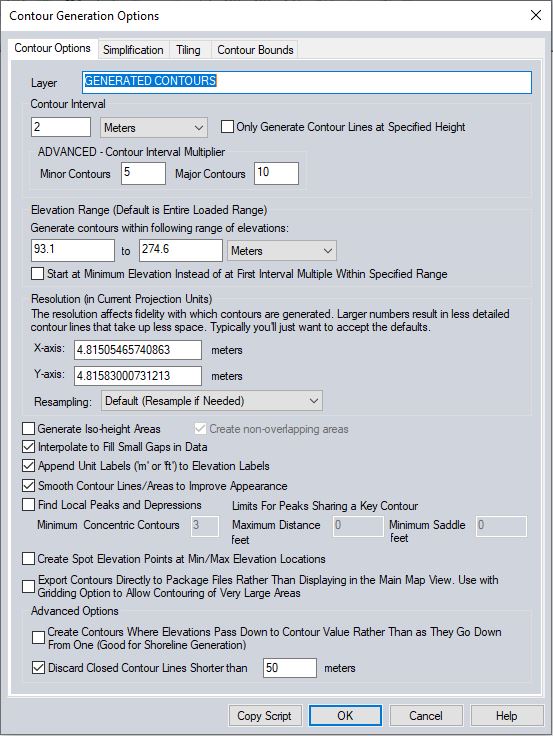

This option allows the user to set the contour interval as well as the major and minor contour interval multipliers. Check the box to Only Create Lines at Specified Height to generate contour lines only at the height specified by the Contour Interval value.
This setting can be used to restrict which contour lines are generated (by default all loaded elevation values are considered).
This allows the user to control how terrain layers are sampled during contour generation.
Smooth Contour Lines
Select this option to add additional vertices along the generated line and area features to improve their appearance.
To generate a large number of contour lines over a large area, the option to export the contours directly to a package file can be used in addition to the Gridding tab options to export contours directly to package files, sometimes by passing memory limitations. Note that the contour lines will be generated so that the higher elevations are to the left of the contour line.
Find Local Peaks and Depressions
This option will generate point features at local peaks found based on user provided parameter values. The Minimum Concentric Contours value describes the minimum number of closed contours nested within each other that are needed to define a peak candidate. The first closed contour containing a peak candidate is referred to as a key contour. Peaks sharing a key contour that are further from each other than the Maximum Distance value will be identified as peaks. If multiple peak candidates are identified within the same key contour and are within the Maximum Distance value of each other, the saddle depth between them will be analyzed. If the saddle depth is greater than the Minimum Saddle value, both peaks will be retained.
Create Spot Elevation Points and Minimum and Maximum Elevations
This will generate point features at the minimum and maximum elevation locations on the loaded terrain data.
Create Contours Where Elevations Pass Down to Contour Value Rather Than as They Go Down From One
is an advanced option to change how the contouring works in flat areas.
If this option is checked, contours generated where the terrain
surface arrives at a contour height from higher terrain, rather than where
it departs a contour height for lower terrain. With a flat plain exactly
at a contour height, the result will be a contour at the base of the hill
where it starts up, rather than at the top where it starts down. This
is most useful when using with datasets that include water (like the ocean)
and want to get a shoreline contour generated where the terrain leaves
the flat surface of the water.
Discard Closed Contour Lines Shorter than X meters
Select and specify a minimum length for any closed contours. Any closed (i.e. complete loop) contours less than the specified length will be marked as deleted.

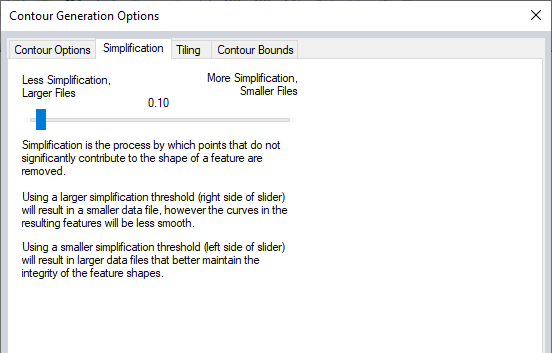

The Simplification panel (displayed below) allows the user to set up the threshold at which points that don't contribute much to the shape of the generated contour are removed in order to generate lines with less vertices.
The Tiling panel allows the
user o break up the contour generation into smaller pieces, which can
sometimes help reduce memory requirements when generating a very large
amount of contour lines.
*Note that when generating contours from a TIN Area not all Contour Generation Options will be available.
