Find Address / Geocoding

The Find Address command displays the Search for an Address dialog (pictured below) which allows searching for an address, city, postal code or mapcode anywhere in the world.


If an address is found that matches the requested location, a results dialog (see sample below) is displayed with the matching location information, as well as button to allow creating a new point feature at the address location, re-centering the map view on the address, and copying the address information to the Windows clipboard for easy pasting into another application.

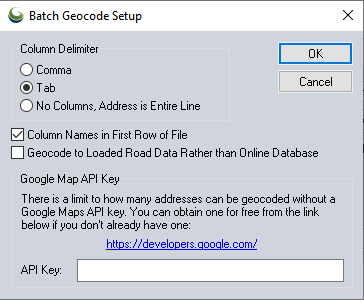

The dialog also includes a Geocode Addresses from File button that allows you to geocode a bunch of addresses at once. The text file that you select to convert can either contain a list of files with addresses in the single line form accepted when searching on a single address, or it can be a comma or tab-delimited file with named columns, like Address, City, State, Country, and Zip or Postcode (see the example file contents below). Note that you are limited to about 5,000 address searches within a single 24 hour period.



1,McPeak Betty,,North Pole,AK,99705,907-488-4879

2,McPeak P,,Anchorage,AK,99501,907-770-2957

3,McPeak Roger,,North Pole,AK,99705,907-488-8823

4,McPeak Allan,1011 McCay Ave,Mobile,AL,36609,251-633-0931

5,McPeak Bill,395 Dupree Dr,Huntsville,AL,35806,256-837-2657

6,McPeak Carol,5923 Lumsden Battery Cir,Mobile,AL,36619,251-661-0989

7,McPeak Dwight,5548 Heath Row Dr,Birmingham,AL,35242,205-991-8862

8,McPeak Faye,146 Larkin St,New Market,AL,35761,256-379-5416

9,McPeak Faye,395 Dupree Dr,Huntsville,AL,35806,256-837-2657

When batch geo-coding, you can choose to either geocode US addresses against an online database, or to geocode to loaded road data instead. If you choose to geocode against loaded road data, you must already have road data loaded with a known address format, like Tiger/Line data in the US, or data with supported attribute names for addressing information, like R_FROM_ADR, L_TO_ADR, R_FROM_CITY, L_TO_CITY, etc., so that the data can be geocoded.

Once you complete a batch geocode operation, the results are displayed in a list in a dialog (see sample below). The Batch Geocode Results dialog contains buttons allowing you to create new point features from the matched address results or to export the results to a new file.

To search by mapcode, rather than long form address simply enter the mapcode into the search address field.

The mapcode system is an international standard that allows any location on the surface of the Earth to be represented by a short 'code', typically composed of 4 to 7 letters and digits. The short mapcode will usually bring you within a few meters of the location, though as with street addresses positional accuracy can vary. Once searched by, the search results window will populate with a coordinate position for the mapcode.

The mapcode system is particularly helpful for mapping in locations where a street address database has not been built, or in rural areas where street names are non-specific.

In addition to the mapcode, input the country and state, province or territory abbreviation. For example, the mapcode 'XNH.VY' located in the state of Maine, in the United States would be expressed using the format below.
